Per Vices MRI Platforms

Digital receiver and pulse generator for MRI applications with advanced triggering and radio performance.

Interface systems, custom designs, and full integration support available

Increase diagnostic confidence and require fewer re-scans, saving time, money, and lives.
Fully integrated radio front end and digital system,
delivering a high level of phase coherence and consistent performance

Per Vices offers multi-functional SDR platforms that can be configured as digital receivers and pulse generators for MRI & NMR applications, with advanced triggering and radio performance that can easily integrate into new or existing systems.

Our custom solutions allow us to meet customer requirements for RF performance, firmware development, and form factor. Our stock Crimson TNG platform provides the base for a system capable of meeting and exceeding customer requirements for NMR and MRI applications through its consistent outstanding performance and fully integrated radio front end and digital system.

With high SNR, digital backhaul, and phase coherency, Crimson TNG requires fewer re-scans, and delivers a higher level of diagnostic confidence. A modular, all-in-one-platform, with flexibility and customization through its software-based system, Crimson TNG is an ideal investment for optimizing the performance of medical imaging systems.

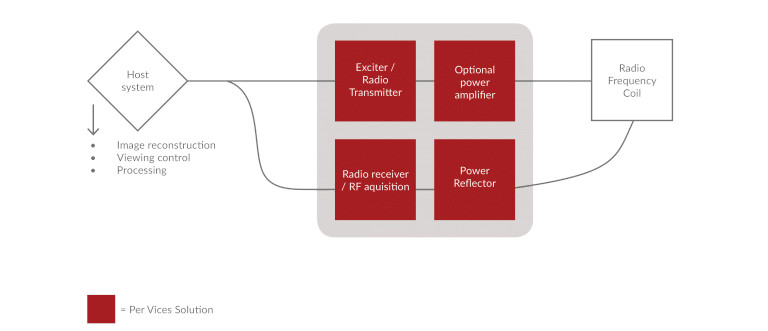

MRI Block Diagram

Custom Developments

Check out common specification changes through our BYOSDR tool:

Crimson TNG, Chestnut & Cyan can be configured for any system through:

  • Number of RF channels
  • Radio Front End
  • Bandwidth



  • Nuclear Magnetic Resonance Spectroscopy (NMR)
  • Magnetic Resonance Imaging (MRI)
  • RF Transmitter/Exciter & RF Receiver/Acquisition
  • Waveform Generation


  • Flexible operating frequency with near DC performance
  • External and internal triggering
  • Channel synchronization & frequency stability
  • Fully integrated radio chain
  • Custom filtering
  • Digital down/up conversion on FPGA
  • Receive and generate pulses with the same hardware
  • Phase coherency across multiple channels
  • Web interface and UHD compatability
  • High SNR and high throughput digital backhaul
  • Small installation footprint

Crimson TNG

  • 4 Rx and 4 Tx RF channels
  • Over 1200 MHz RF bandwidth in total
  • Operating frequency DC to 6 GHz
  • Dual 10 Gbps SFP+ ports
  • Intel Arria V ST FPGA SoC
  • Compact form factor (1U rackmount)
  • Pulse-per-second (PPS) port


  • 4 Rx and 4 Tx channels
  • 500 MHz RF bandwidth per channel
  • Operating frequency DC to 9 GHz
  • Dual 100 Gbps qSFP+ ports
  • Intel Arria 10 FPGA SoC
  • Compact form factor (2U rackmount)
  • Pulse-per-second (PPS) port


  • Up to 16 RF channels
  • Over 1 GHz RF bandwidth per channel
  • Operating frequency DC to 18 GHz
  • Quad 40 Gbps qSFP+ ports
  • Intel Stratix 10 FPGA SoC
  • Compact form factor (3U rackmount)
  • Pulse-per-second (PPS) port


As a provider with extensive experience in both the SDR solutions and integration support for all customers, Per Vices makes it easy for customers to include new high performance SDRs into their new and existing systems. We work with you to provide scaled implementation and testing to follow your organizations needs and timeline. We offer: site and equipment planning, hardware deployment, expected performance calculations, customization to meet specific hardware and software interfaces, monitoring and maintenance packages, custom filtering through hardware, and more.

Per Vices has experience designing and developing hardware, firmware, and software that offer:

  • Multiple-input multiple-output (MIMO) capability
  • ELF, SLF, ULF, VLF, LF, MF, HF, VHF, and UHF systems
  • Phase coherency & stability
  • Autonomous triggering
  • Custom features such as FPGA and hardware development
  • Easy integration
