Chestnut: High-Performance 4 Rx / 4 Tx Software Defined Radio
Chestnut is a high-performance software defined radio (SDR) platform providing 4 receive and 4 transmit radio chains, 500 MHz of instantaneous RF bandwidth per channel, 16-bit converters, and a tuning range from near DC to 9 GHz.
Each radio chain can be independently controlled or configured to share a common local oscillator for applications requiring improved phase coherency and stability across channels. Four 40GBASE-R interfaces provide up to 160 Gbps of digital backhaul for transferring high-bandwidth IQ data between the SDR and host system.

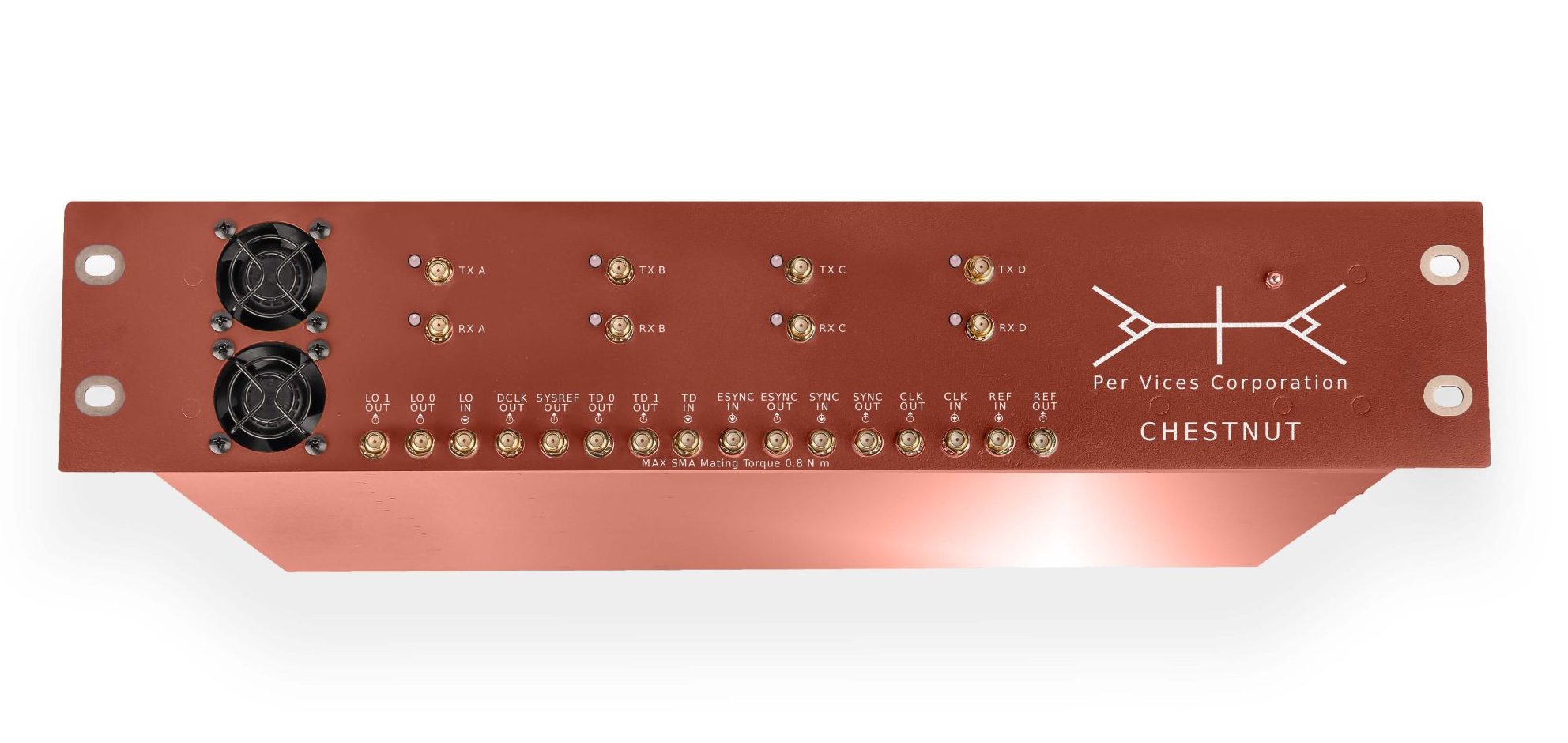

Chestnut combines wideband RF performance, FPGA-based signal processing, precise timing, and high-speed digital interfaces in a compact 2U platform designed for applications including radar, spectrum monitoring, RF recording and playback, GPS/GNSS, wireless communications, electronic warfare, test and measurement, and other advanced RF systems.
Specifications
| Specification | Chestnut |
|---|---|
|
Tuning Range |
Near DC to 9 GHz |
|
Number of Radio Chains |
4 Rx and 4 Tx
|
|
Bandwidth per Radio Chain |
500 MHz |
|
Converter Resolution |
16 bits |
|
Digital Backhaul |
4 x 40GBASE-R; 160 Gbps |
|
Form Factor
|
19” 2U 482.6 mm x 402.0 mm x 133.0 mm 6.2 kg |
|
FPGA |
Intel Stratix 10 FPGA SoC |
Technical Documentation
Key Capabilities
500 MHZ INSTANTANEOUS BANDWIDTH
Each receive and transmit radio chain supports up to 500 MHz of instantaneous RF bandwidth, enabling wideband signal capture, generation, monitoring, and processing across all four channels.
PHASE-COHERENT OPERATION
Radio chains can share a common local oscillator to improve channel-to-channel phase coherency and stability for applications including radar, direction finding, beamforming, and other coherent RF systems.
4 RX / 4 TX RADIO CHAINS
Four receive and four transmit channels support multi-channel and full-duplex SDR applications. Radio chains can be independently tuned and controlled for applications requiring simultaneous operation across multiple frequencies.
160 GBPS DIGITAL BACKHAUL
Four 40GBASE-R interfaces provide up to 160 Gbps of aggregate digital throughput for transferring high-bandwidth IQ data between Chestnut and host processing, recording, or storage systems.
FPGA SIGNAL PROCESSING
The Intel Stratix 10 FPGA SoC provides substantial programmable resources for Per Vices DSP, filtering, triggering, digital up/down conversion, data processing, and other application-specific functionality directly on the SDR.
INTEGRATION & CUSTOMIZATION
Chestnut can be integrated into new or existing RF systems with support for custom FPGA functionality, software, interfaces, filtering, timing, synchronization, and other application-specific requirements.
CHESTNUT APPLICATIONS
Radar
500 MHz instantaneous bandwidth, phase-coherent Rx and Tx channels, precise timing, and Stratix 10 FPGA processing support radar waveform generation, capture, synchronization, beamforming, and real-time processing.
Low Latency Links
Onboard FPGA processing and four 40GBASE-R interfaces enable high-throughput signal processing close to the RF front end, reducing unnecessary data movement for latency-sensitive communications systems.
GPS/GNSS
Multiple independently controlled RF channels, phase-coherent operation, precise timing, and FPGA processing support GNSS signal capture, generation, simulation, and advanced positioning research.
Medical
Phase-coherent multi-channel RF operation, 500 MHz instantaneous bandwidth, precise timing, and programmable FPGA processing support research and development of advanced RF-based medical imaging systems.
Interoperability
Wideband operation, independently configurable radio channels, and FPGA processing support development and testing across multiple frequencies, waveforms, protocols, and RF configurations.
Test and Measurement
Configurable wideband Rx and Tx channels provide a flexible platform for RF signal generation, capture, characterization, automated testing, hardware-in-the-loop testing, and laboratory development.
Spectrum Monitoring
Capture and process up to 500 MHz of instantaneous bandwidth per receive channel, with high-speed digital interfaces supporting wideband spectrum monitoring, analysis, and continuous IQ data transfer.
Electronic Warfare
Wideband signal capture and generation, phase-coherent multi-channel RF operation, and Stratix 10 FPGA processing support electronic warfare research, signal analysis, detection, characterization, and system development.
Wideband RF Recording & Playback
Capture, record, and playback wideband IQ data using up to 500 MHz of instantaneous bandwidth per receive channel and 160 Gbps of aggregate digital backhaul to compatible host and storage systems.
Signal Intelligence (SIGINT)
Wideband multi-channel signal capture, FPGA processing, and high-speed IQ streaming support signal detection, monitoring, analysis, characterization, and development of advanced SIGINT systems.
Satellite Communications (SATCOM)
Wideband Rx and Tx channels, flexible frequency tuning, FPGA processing, and high-speed digital interfaces support SATCOM waveform development, ground stations, testing, and system integration.
Wireless Communications
Four wideband Rx and Tx channels, 500 MHz instantaneous bandwidth, flexible tuning, and FPGA processing support development and testing of advanced wideband and multi-channel wireless communication systems.
PRICING
Chestnut is available as a basic stand-alone SDR or with a kit that includes SMA cables, SFP+ cables, attenuators, and PCIes.
For more information on configurations and prices go to our Pricing page.
Per Vices offers a custom number of channels and configurations. Try our BYOSDR tool to get an estimate for your parameters.
KIT OPTIONS – As Requested
- SMA Cables
- qSFP+ Cables
- Compatible 40G NIC (PCIe)
- Host & Storage systems
