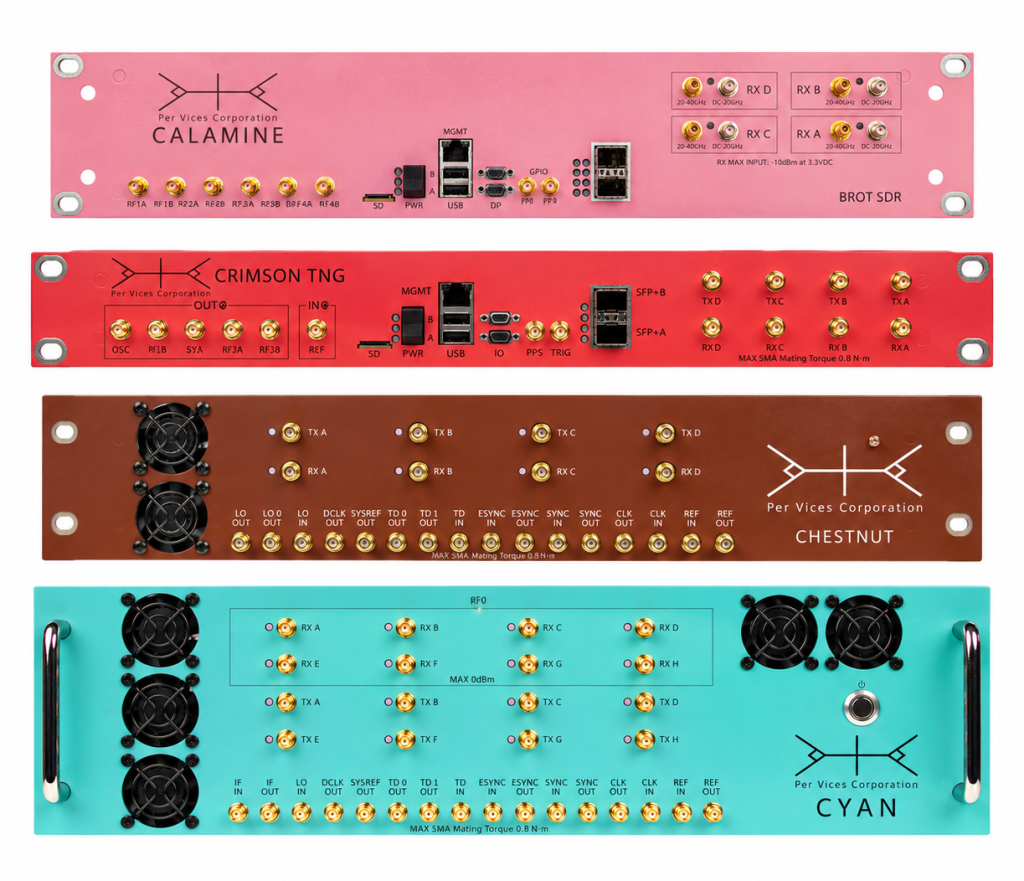

Crimson TNG is a flexible wideband, high-gain SDR platform equipped with four independent receive chains and four independent transmit chains, each capable of up to 322MHz of RF bandwidth up to 6GHz.

Crimson TNG is powered by an Altera Arria V FPGA (5ASTMD3E3F31I3N) with an on-chip dual-core ARM Cortex-A9 processor with web-based interface.

Crimson
Phase-coherent signal capture

Deterministic phase coherency and latency for geolocation and MIMO

Seamless wireless communication

Transparently communicate with wireless signals from DC to 6GHz

Superior signals intelligence

Ultra-wide bandwidth enables advanced spectrum monitoring

RF signal data acquisition

Flexibility of processing data on-board or streaming raw IQ data

Digital beamforming

Improve signal detection via patented digital beamforming techniques

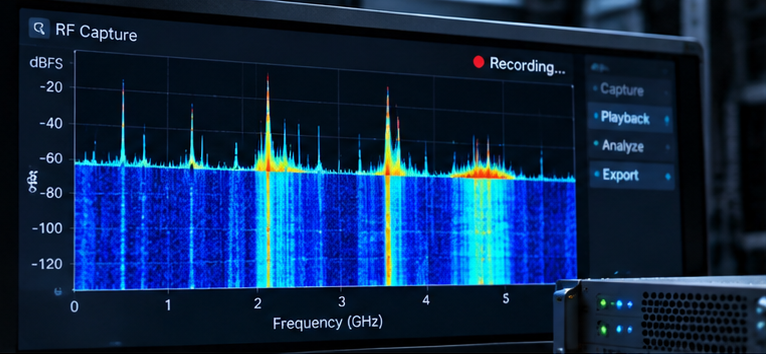

Test and measurement

Open-source tools and web interface for streaming and recording

Crimson TNG Full-Kit
USD 14,500

Includes x1 Crimson TNG unit, x8 SMA cables. x8 Log Periodic Antennas (850-6500MHz), x1 Antenna stand holder with 4 hands, x2 SFP+ cables

Buy

Crimson TNG Half-Kit
USD 14,000

Includes x1 Crimson TNG unit, x4 SMA cables, x4 Log Periodic Antennas (850-6500MHz), x1 Antenna stand holder with 4 hands, x1 SFP+ cables

Buy

Crimson TNG Stand-alone
USD 13,500

Includes x1 Crimson TNG unit

Buy
Crimson TNG
Specifications
  • 5.4kg, 1U Form Factor
  • 482.6mm x 500mm x 43.69mm
  • Pulse-per-second (PPS) port
  • Operating frequency DC to 6GHz
  • Deterministic phase coherency and latency
  • Digital down/up conversion on FPGA
  • Over 1200MHz RF banwidth
  • Two quad channel, 16 bit, 2500 MSPS DACs
  • Four dual channel, 16 bit, 370 MSPS ADCs
  • 20Gbps using dual SFP+
  • Altera Arria V ST FPGA
  • SoC 10MHz, 10ppb, reference OCXO
  • Direct conversion quadrature transceiver
  • Includes web interface and UHD compatibility
